Atomic layer deposition (ALD) is a thin-film growth technology that is capable of depositing pinhole-free and uniform insulator films for electronic devices (Power and RF). ALD offers exceptional conformality on the high-aspect-ratio trench and via structures, thickness control at the angstrom level, and tunable film composition based on sequential, self-limiting reactions. Samco provides a highly flexible open-loaded thermal ALD system AL-1 and loadlock plasma-enhanced ALD system AD-230LP.

•

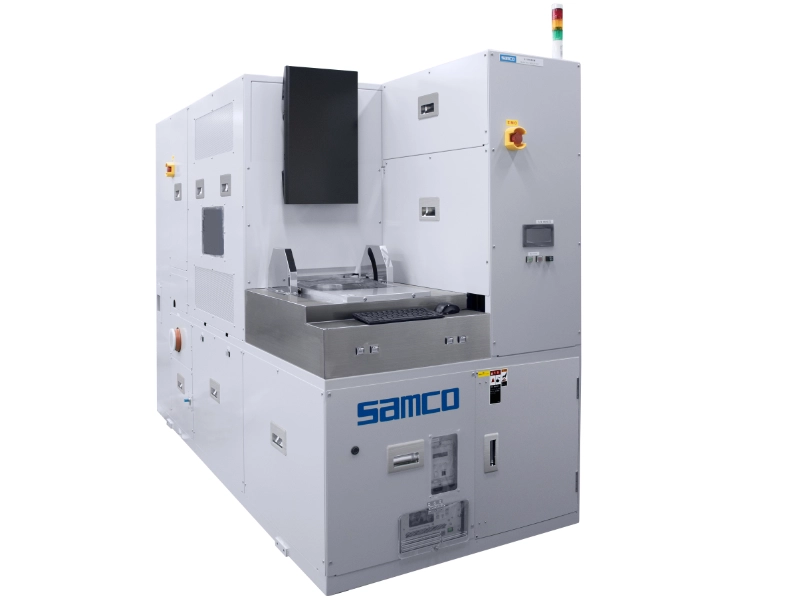

  Plasma Enhanced ALD System AD-800LP

  Excellent repeatability & stability

  •
  •
  •
•

  Thermal ALD System AL-1

  Pin-hole free films deposition

  •
  •

Find out more

Plasma Enhanced Chemical Vapor Deposition (PECVD) is a technology to form a thin film by generating active radicals and ions on a target substrate by turning a reactive gas into a plasma state and causing a chemical reaction on the target substrate to be deposited. It is used to deposit silicon nitride film (SiN) as a passivation film and silicon oxide film (SiO₂) as an interlayer insulating film in the manufacturing process of compound semiconductors and silicon semiconductors.

•

  Plasma Enhanced CVD System PD-220NL

  Compact load lock system
  •
  •
  •
•

  Plasma Enhanced CVD System PD-2201LC

  Space-saving production system

  •
  •
  •
•

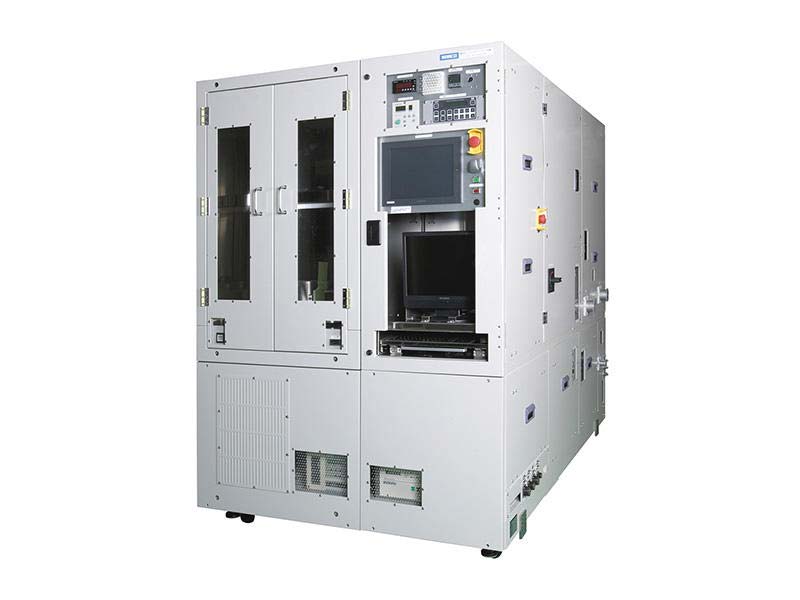

  Plasma Enhanced CVD System PD-3800L

  Tray based batch processing

  •
  •

Find out more

The Liquid Source CVD Systems is a low-temperature (80 ~ 400°C), high-rate (>300 nm/min) plasma enhanced CVD system for R&D. Samco's unique LSCVD system uses self-bias deposition techniques and a TEOS to deposit SiO₂ films with low stress, from thin films to extremely thick films (up to 100 µm).

•

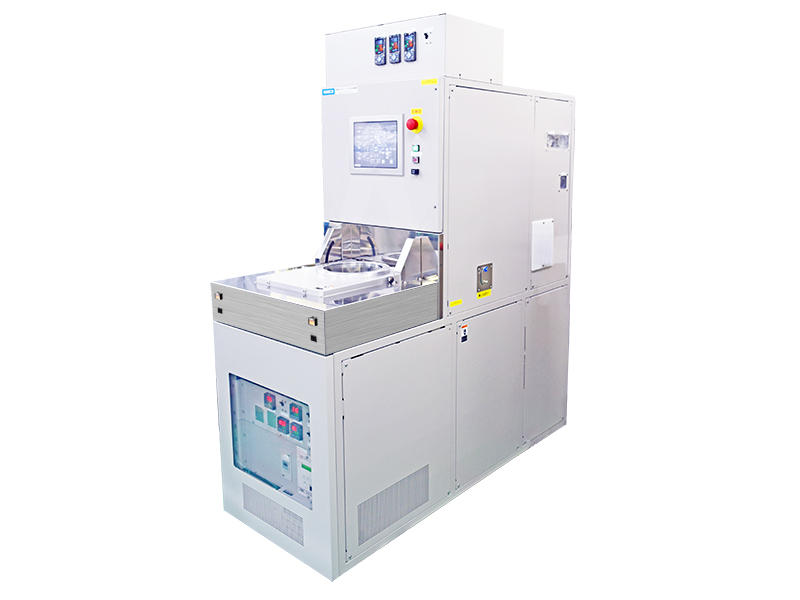

  Liquid Source CVD System PD-200STL

  Loadlock system up to ø200 mm

  •
  •
  •
  •
•

  Liquid Source CVD System PD-270STLC

  Cassette loading system

  •
  •
  •
•

  Liquid Source CVD System PD-330STC

  Processing up to ø300 mm

  •
  •
  •
•

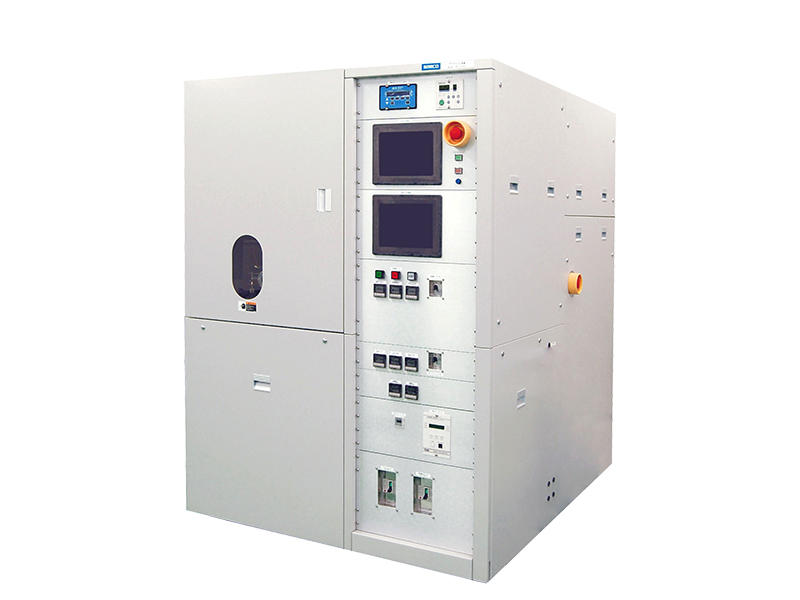

  Liquid Source CVD System PD-100ST

  Open-load system for R&D

  •
  •
  •
  •

Find out more

Diamond-like carbon (DLC) coating is a process of depositing a DLC film on a substrate by plasma enhanced chemical vapor deposition (CVD). Samco's DLC coating process allows the formation of dense films using high ion energy. This film has a high barrier performance.

•

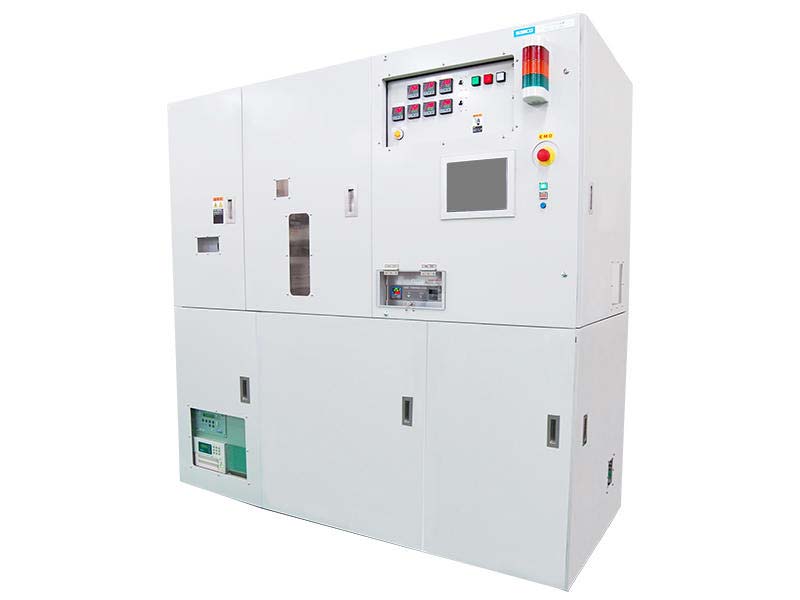

  Diamond-Like Carbon Coating System PD-100D

  Dedicated for DLC Coating

  •
  •
